Anatomy & Physics of Muscles
In our last newsletter, we examined the physiology of the human muscle system from an alternative health perspective. In this newsletter, we continue with that theme by exploring both the physics of muscle movement and the code that underpins muscle anatomy. And no, the goal is not to teach you the names of all 799 skeletal muscles in the body, but rather to show you "how" the muscles are named. Muscle names are not just a bunch of random Latin words, but rather, are named according to a set of informal rules; and once you understand those rules, you can pretty much tell where any muscle is located and what it does.
By itself, though, this is not important; but once armed with the information, we will then be able to talk about exercise -- and exactly how to exercise our muscles to accomplish specific goals and achieve optimum health.
The Physics of Muscles
Before we can discuss the naming system for muscles, we need to understand the principle of levers that make the whole musculoskeletal system work since many muscle names are derived from that principle. The reason for this is simple: all skeletal muscles provide stability and produce movement in the body by acting as the force or effort applied to the levers of our bones -- and by using opposing forces to achieve mechanical advantage. Or to put it another way, muscles move bones around joints.

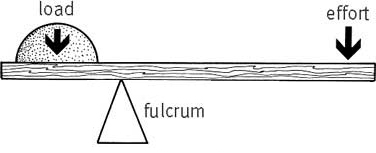

There are actually three types or classes of levers, but when we think of levers, we normally think of what are known as first class levers. These are the levers where the fulcrum is located between the effort (or force) we exert and the load (or weight) we are trying to move.
With a lever, you can either increase the force of the movement, its speed, or its range of motion -- but you can't do all three at the same time. Levers are about tradeoffs; you trade one benefit for another. For example, in the above lever, if we move the fulcrum to the right, we gain speed and range of motion since it takes very little movement on our part to move the load rapidly through a great distance. However, in exchange for this advantage, it does take a great deal of effort.
On the other hand, if we move the fulcrum to the left, closer to the load, it increases our strength significantly, but we get much less movement out of our load.
To clarify, if the distance from where we exert effort to the fulcrum is 10X's the distance from the fulcrum to the weight, we can lift 10 lbs with 1 lb of force. Or vice versa. This is what Archimedes was referring to when he said, "Give me a lever long enough and a place to stand, and I can move the world."
In truth, there are very few first class levers in the human body -- the muscles of the back of the neck being a notable exception. As you can see, the muscle is attached to the clavicle (collarbone) and the back of the head. The fulcrum lies at the atlas bone at the top of the spine. The load is the front of the head that we're trying to hold up. There's very little mechanical advantage here since the fulcrum is pretty much centered between the load (the front of the head) and where the muscle exerts its force (the back of the head)--but then there doesn't really have to be much gain or loss since these are essentially postural muscles that merely hold the head up. You know exactly which muscles these are if you've ever tried to sleep on a plane and your head keeps dropping down and waking you up when the muscles relax.

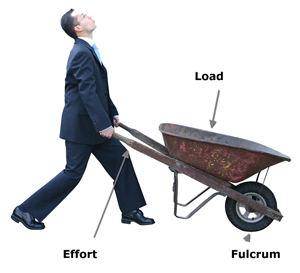

In a second class lever, the load is located between the fulcrum and where the effort is applied. This is like a wheelbarrow.
There are very few second class levers in the body. The muscles used when you stand on your tiptoes would be an exception. Your toes are the fulcrum; your body is the load; and your calf muscles pulling on your heel provide the effort. There is very little mechanical advantage when standing on our toes because the resistance is somewhat removed from the fulcrum, but we get to lift a pretty good distance with minimal muscle movement.
Well, there are only three classes of levers, and if the human body has very few first and second class levers, then by the process of elimination, most of the muscles in our body must work as part of third class lever systems. And that is exactly the case. In a third class lever system, the force is applied between the fulcrum and the load.
While you might think that all muscles would be designed to increase strength--ala Archimedes-- that's not necessarily the case. Some of the major third class levers in our body are designed to increase range of movement and speed at the expense of strength. Think of your biceps for a moment -- think of how little muscle movement is required to fully bend your arm. That's a lot of motion, for very little muscle movement. When doing curls for example, the elbow is the fulcrum, the weight in your hand is the load, and biceps muscle is the force. Again, the gain is in speed and range of motion. That's why it takes so much work at the gym to build strong biceps. Your thighs are similar. Speed and range are gained over strength -- which is why the thigh muscles need to be so large to compensate.
Basic Terminology in Understanding Muscle Anatomy
Before we actually get to the naming of muscles, we need to touch on a few pieces of terminology that are important to know.
- Proximal means that something is near the top of an organ or muscle. (For example, when talking about the biceps, up near where the bicep attaches to the shoulder is proximal.)
- Distal means that something is away from the top of the organ or muscle. (Down, just below the elbow where the bicep attaches to the forearm is distal.)
- The origin of a muscle is where the muscle attaches to the more stationary bone or structure. (Again, using the bicep as a reference, the origin is at the shoulder, the more stationary point of attachment.)
- Its counterpart is the insertion, which is where the tendon at the end of the muscle attaches to the moving bone or structure. (For the bicep, insertion is on the radius of the forearm, near the elbow, the part of the arm that we're trying to lift up as the bicep contracts.)
- Tendons are the dense connective tissue (thickened, fibrous structure made of collagen) at the ends of every muscle group that connect the muscle to bone. (Note: Ligaments are not involved with muscle. They attach bone to bone to stabilize joints. For example, think of the ligaments stabilizing the knee -- and who doesn't know about those ligaments thanks to American football.)
- The tubercle is the thickened area of a bone where a tendon attaches. It is thickened because bone growth has responded to the increased stress at the area of attachment. (Note: any stress on a bone causes the stressed area to thicken and grow stronger. This is an important concept to remember when it comes to exercise and maximizing bone strength.)
- And the belly of a muscle is the thicker middle portion of a muscle. (The part that bodybuilders are trying to make look really big--as in the bicep.)
The Eight Part Code for the Naming of Muscles
Now let's talk about how muscles are named. Surprisingly, virtually all muscles are named based on one or more of the following eight criteria. Learn these eight criteria--and their Latin (or sometimes Greek and even French) equivalents--and you can locate in the body virtually any muscle that someone names. And thus, unless you're an anatomist, you don't have to memorize all 799 muscles (approximately) to be anatomically conversant. The eight criteria are:
- Orientation of the muscle fibers
- Mechanical action of the muscles
- Number of origins of a muscle (and yes, muscles can have more than one origin)
- The points of origin and insertion
- Name of the muscle function
- The muscle's location
When it comes to size, muscles are large or small, short or long, or wide.

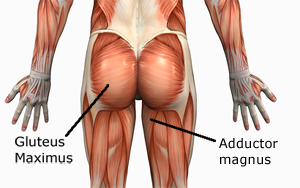

- The largest muscle in a related group of muscles is often referred to as maximus or magnus. An example that you're familiar with is the gluteus maximus. Gluteus is Latin for your rear end -- or more politely, your buttock. Thus, gluteus maximus identifies the largest muscle in your butt--the one you feel when you squeeze the cheeks of your butt together. Another example is the adductor magnus, which is the large muscle running down the inner thigh that pulls the leg back in from the side. You can feel this muscle if you balance against a table, putting your hand against the inside of the opposite thigh and then resisting as that hand tries to push the leg out to the side.
- Minimus, not surprisingly, refers to the smallest of a group. Thus gluteus minimus identifies the smaller butt muscle located underneath its maximus big brother.
- Longus, as you might suspect, refers to the longest of a group--as in the adductor longus, which is thinner than the adductor magnus and runs essentially parallel to it.
- Brevis identifies the shortest of a group. The adductor brevis runs across the thigh to assist in pulling the thigh in towards your body's midline as opposed to down the length of your inner thigh as do the adductor magnus and minimus.
- In Latin, the word "latus" means "side." Thus latissimus identifies the largest muscle "in width" in a group. Latissimus dorsi is the name of the large muscles that run from under your arms, across your "sides," and then across the middle of your back. Bodybuilders refer to these as their "lats."
So again, quick review, when it comes to size, the key identifiers are maximus or magnus, minimus, longus, brevis, and latissimus.
There are really only four shapes that you need to concern yourself with when it comes to naming muscles: trapezoids, triangles, saw tooth, and flat.
- A trapezoid is like a rectangle, but with only two sides that are parallel as opposed to all four. For simplicity you can think of it as an oddly shaped rectangle. The trapezius is the large distorted rectangle that sits on the upper portion of the back and is rotated 45% so that one corner attaches to each shoulder, one at the top of the neck, and the fourth corner to the middle of the back. I actually think it looks more diamond shaped, but I didn't discover it, so I didn't get to name it.
- The fourth letter in the Greek alphabet is delta, which is drawn in the shape of a triangle Δ. Deltoid, then, refers to the triangular shaped muscle that sits on the top of the shoulder.
- The Latin verb for saw is "serrare." In anatomy, then, serratus means saw-toothed in shape. Serratus anterior is the name of the muscle that holds your scapula (shoulder blade) to your ribs. It gets its saw-like appearance from the pattern it makes is it attaches to each individual rib.
- The French word for flat is "plat." Think of the word plateau. The platysma muscle is the broad, thin, flat muscle that has its origin across the middle of your chest, runs up across the front and sides of your neck and ends at your chin. Its primary role is to hold the other muscles of the neck in place and help with facial expressions. It comes into play when you tense your jaw and neck.
Orientation of the Muscle Fibers
Orientation refers to how the muscle fibers line up to the midline of the body. This makes it pretty simple. They can only be parallel, perpendicular, or diagonal to that line.

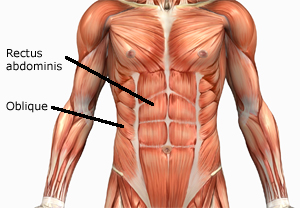

- Rectus is the word used to identify those muscles whose fibers run parallel to the midline. The Latin word for "right" is "rectus." Rectus abdominis, for example, identifies the six-pack abdominal muscle that runs down the front of the stomach--with its fibers running parallel to the spine. I have to admit, getting parallel out of rectus is a bit of a stretch. Its original root, as I mentioned, is in the Latin word for "right or true." Think of the word rectitude which identifies the quality of being virtuous or straight. Well, from that you get "rectus" as identifying a muscle that runs straight and true -- or dare I say: parallel. Don't blame me. Nobody ever said all doctors were Latin scholars. These are the famous "six-pack" muscles. They get that name because, when well developed, the muscle gets segmented by bands of cartilage that give the muscle the appearance of having six separate sections.
- Oblique comes from the old French and means "at an angle." Thus we have both the external and internal obliques of the abdomen, which run one on top of the other, with their fibers running at an angle to the midline and perpendicular to each other. These are the muscles just to the outside of your six-pack, and these are the muscles you work when you do sit ups and touch each elbow to the opposite leg.
- Transverse means crosswise or perpendicular to the midline of the body. Thus we have the transversus abdominis. From the name, you can pretty much guess that they're located in the abdomen and which direction their fibers run. In fact, these muscles are located in the sides of the abdomen, underneath the obliques. And the fibers do indeed run across the body. And it's these muscles you feel when you stretch from side to side.
Mechanical Action of the Muscle
Here we're talking about what the muscle does. Does it flex, extend, turn up, turn something down, lift it up, lower it, rotate around a joint, move body parts away from a midline or pull them back towards the midline, make an area rigid, or close an opening? The action that a muscle performs is often used in naming that muscle.
- Flexor muscles decrease the angle at a joint. The flexor pollicis longus is the muscle in the forearm that pulls on the thumb and bends or flexes it inward toward the palm. We already know that longus means it's the longest muscle in its group -- and, in fact, it runs the full length of the forearm from the elbow to the thumb. And "pollicis" is Latin for thumb. Thus, the name tells us that it's the long muscle that flexes the thumb.
- Extensors are the muscles that counter flexors. They increase the angle at a joint. The extensor pollicis longus, therefore, is the long muscle in the forearm that straightens out the thumb once it's been bent inward.
- Pronators turn limbs so that they face downwards or backwards. If you hold your arm out in front of you, palm up, it's the pronator teres muscle that allows you to turn the arm at the elbow so that the palm is now facing downwards. The Latin word "pronus" means "face down" -- as in lying prone. And "teres" is Latin for "rounded or cylindrical," which refers to the shape of the muscle.
- The counter to a pronator is a supinator. The musculus supinator, for example, is the muscle in your forearm that turns your palm back facing up after you've pronated it down. Supinator comes from the Latin word supinum, which means "lying on your back."
- Levators, as is obvious from the word, are muscles that lift things up. The levator ani is the muscle that pulls the anus up at the end of the digestive tract. If that muscle starts to weaken, you can feel the anus starting to push out and down -- very uncomfortable.
- Depressors, as would be expected, are the opposite of levators; they push or pull things downward. The depressor labii inferioris is the muscle located below (or inferior) to the lips that pulls the lower lip down.
- Rotators, as the name implies, produce a circular movement around a joint -- the rotator cuff in the shoulder being the most obvious example.
- Abductor muscles move bones away from a midline in the body. The term is used both generically to describe the action of any muscle that moves away from the midline (the gluteus medius, for example, is an abductor in that its action is to pull the thigh out from the midline) and as part of the formal name of a handful of muscles such as the abductor pollicis brevis, which pulls the thumb away from the palm.
- Adductors move the bones back towards the midline as we saw with both the adductor longus and the adductor brevis, which are located in the inner thigh and that we looked at previously.
- Tensor muscles make things rigid. The tensor fascia lata muscle in the leg tightens and gets rigid to support the knee.
- Sphincters close openings, as does the anal sphincter.
Number of Points of Origin
A small number of muscles are named after the number of points of attachment they have at their points of origin. These would be:

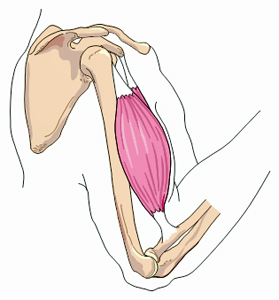

- The biceps brachii in your arm that has two points of origin. Brachii is Latin for branches -- thus, your biceps muscle has two branches at its origin.
- The triceps brachii in your arm has three points of origin.
- And the quadriceps in your leg has four points of origin.
Origin and Insertion
An even smaller number of muscles are named after the parts of the body where they start and end -- their origin and insertion. The sternocleidomastoid muscle, for example, originates from both the sternum and clavicle (breastbone and collarbone) and inserts into the mastoid bone (just below the ear).
Named by Function
And a small number of muscles are named after their function.
- The risorius is a facial muscle that is crucial for the expressions of smiling and laughter. Humans are the only animals that have a well developed risorius. Risorius comes from the Latin word "risus," which means "laugh."
- Masseter comes from the Greek word for "chew," and that's its function in the human jaw.
- The sartorius muscle (from the Latin word for "tailor") runs from the outer hip, across the thigh, and ends at the inner knee. This muscle pulls the leg up at the knee while simultaneously turning it inward. It is used to cross the legs in the manner of an old time tailor sitting on the floor and sewing hides together--hence the name.
And finally, some muscles are named by where they are found in the body.
- The temporalis muscle is named after the temporal bone (your temple) on top of which it is located.
- Likewise, the zygomatic bone is your cheekbone, and the zygomaticus muscles are located over your cheekbone.
Review of the major muscle groups
Now that we know how muscles are named, let's quickly work through the body and take a look at the major muscle groups
Upper body front
- Pectoralis major muscles originate in the sternum and clavicle. They attach under the arm and pull the arms up across the body and rotate them inward. These are your pecs. They are worked by butterflies and bench presses.
- The deltoid originates in the clavicle, with insertion in the arm below the shoulder. The deltoid elevates the arm when it contracts.
- Biceps brachii and brachialis work in tandem, attaching in the forearm, and lifting the forearm.
- Rectus abdominis is a paired muscle that runs down either side of the abdomen. It is supported by tendons that give the muscle the appearance of being segmented -- thus the six pack.
- Sartorius, as discussed previously
- Adductor magnus and longus, which pull the legs together at the midline
- Rectus femoris, which helps you kick
- Vastus lateralis and vastus medialis, which along with the rectus femoris help extend the knee and form a cage around it.
- The trapezius and latissimus dorsi, joined by a mass of tendons, pull across the back.
- Under the scapula are the Infraspinatus, teres minor, and teres major, which all serve to stabilize the shoulder blades so that the shoulders can move.
- Gluteus maximus and the gluteus minimus hidden underneath the maximus are primarily stabilizing muscles. They support the pelvis and the trunk where it sits on the femur (the thigh bone). These muscles are most noticeable when standing on one leg. Without special exercise--squats, lunges, and backward leg lifts--they tend to lose tone as we age. This is the saggy butt often associated with aging.
- Hamstrings: semitendinosus and biceps femoris (not to be confused with the biceps brachii in your arm) -- to flex the lower leg at the knee. (Semitendinosius comes from the Latin words for "half tightly stretched" and refers to normal tightness of the calf muscles.)
- Calf muscles: gastrocnemius, with its two heads -- medial and lateral. (Gastrocnemius comes from the Greek and Latin words for calf.)
Face and Neck
- Frontalis wrinkles your brow.
- Orbicularis oculi circles the eye.
- Muscles of facial expression:
- Levator labii superioris, which raises the lips from above.
- Zygomaticus minor and major that raises the lips from the side.
- Depressor anguli oris that pulls the lips down.
- Risoris that makes you smile.
- Mentalis that pulls the lip down with the chin.
- Neck muscles:
- Sternocleidomastoid muscles flex and rotate the head.
- Omohyoid muscles are used primarily in chewing and swallowing.
- Sternohyoid helps control the hyoid bone, which plays a key role in swallowing and speech.
- Thyroid cartilage.
Let's look back at a couple of key pieces of information that we explored today and see what principles we can draw from them that might be useful in optimizing our own health.
Developing Muscles in Balance
First, early in the newsletter we explored in some detail that all muscle movement is based on the principle of levers, activated by contracting muscles -- and that to get movement in opposite directions, we need opposing pairs of muscles that pull the levers in opposite directions when they contract. Thus, biceps bend our arms up and triceps straighten them out. This brings us to our first key concept: balance.
When you work one set of muscles--say the biceps--you need to work their counterparts--in this case, the triceps. This is not just a matter of looking pretty for bodybuilding competitions; it's a question of long term fitness. When muscles are not developed in balance:
- It stresses bones in only one direction, which causes bones to build in an unsound manner. Remember, bones build in response to stress--both gravitational and exercise induced. All muscles attach to bones and pull on those bones, using those bones as levers. If, for example, you continually work your biceps without developing your triceps, your muscles are overwhelming pulling on your arm bones in only one direction. This causes the bone to develop strength on one side, and weakness on the other. (We'll soon explore how bones build in response to stress, which is why weight bearing exercise is so important.) Prolonged, uneven stress on bone is a prescription for serious bone curvature or even a predisposition for breakage down the road.
- It also should be noted that developing muscles that are out of balance is a prescription for chronic muscle aches and pains as the over developed muscles continually pull and tweak their underdeveloped counterparts.
- And it's bad for spinal alignment. If your core muscles are not developed equally (or not at all), they will pull the spine in one direction or the other, rather than stabilize it in the proper alignment. This guarantees chronic back pain and even disc problems in time.
Our muscles also tend to work as protective cages in several areas of our body. These cages not only protect those sensitive areas from damage, they also support and stabilize those areas to protect them from going out of alignment and chronic pain. Two key areas stand out: your lower back and your knee.
The core muscles of your stomach (rectus abdominis, transversus abdominis, and the obliques) and your back (the latissimus dorsi) not only protect your internal organs and hold them in place; they also literally hold your spine in correct alignment. If those muscles weaken or develop an imbalance, you can pretty much guarantee, you'll be dealing with chronic back pain.
As for your knee, a cage of muscles and their tendons runs from the thigh to the lower leg protecting the knee from instability and injury. Damage to these muscles and tendons requires extensive physical therapy; otherwise the knee will never recover its full strength. Medial and lateral ligaments also help stabilize the knee, as do anterior and posterior ligaments -- all of which can be injured. The real protection for your knee, though, is this cage of tendons that come from the muscles of your thigh. The stronger those muscles are the stronger that cage is. And keeping in mind that painful knees are one of the biggest reasons people have difficulty walking as they age, keeping those muscles toned and in balance makes all the sense in the world. And this is especially important after any injury--no matter your age. For example, when you are injured and become immobile, the huge muscles of the thigh, such as the quadriceps are the first muscles to atrophy. Without extensive physical therapy, they will never fully recover, which means that your knee is now more prone to injury because its cage is compromised.
In the next issue, we'll conclude our examination of human musculature by talking about the principles of exercise. You will want to read this newsletter if you are concerned about your health. Muscles are not just for good looks. They:
- Give us strength.
- Make bones stronger.
- Hold your spine in line and your organs in place.
- Protect you from falling. The stronger your legs muscles are, the less likely you are to be unsteady and fall as you age.
- Protect you even if you do fall. Muscle is dense tissue. If your hip is surrounded by toned muscle, when you fall, it cushions your hip bone and protects it from breaking.
- Keep you independent longer as you age.
Specifically, we'll explore the different types of muscle fibers we have and how certain exercises can selectively change the balance of those fibers in our muscles -- emphasizing one kind of fiber over another. It's what allows one set of exercise to develop a group of muscles that are suitable for a bodybuilder, while another set makes the same group of muscles suitable for a sprinter. And for those of us who are not professional athletes, understanding muscle fibers and how to exercise them is what allows us to tune our bodies to maximize the lifestyle that we actually lead -- assuming we're not couch potatoes.
